Scaffolding Runway System

Product Details

The NIKO Scaffolding Runway System is a modular lifting and handling solution designed to attach directly to a scaffolding structure. It enables loads to be lifted and moved along a defined runway, providing controlled material handling in areas where conventional lifting equipment may be impractical.

The system can incorporate straight track, curves and switches, allowing the runway to follow the scaffolding and the requirements of the application. Manual or electric hoists can be used for lifting, while two parallel runways can also support a bridge to create a lightweight crane system.

Its modular construction makes the system particularly suitable for temporary installations and changing construction environments, as sections can be installed, extended, shortened or relocated as required.

Benefits, Features, and Technical Specification

Benefits

Enables controlled lifting and movement of materials at height
Reduces reliance on conventional lifting solutions in restricted areas
Lightweight alternative to traditional I-beam runway systems
Quick and simple to install
Suitable for permanent or temporary applications
Modular – easy to extend, shorten or relocate
Can access areas that conventional cranes cannot
Can cantilever beyond the scaffolding structure for loading/unloading
Suitable for indoor and outdoor applications
Can be configured as a monorail or light crane

Features

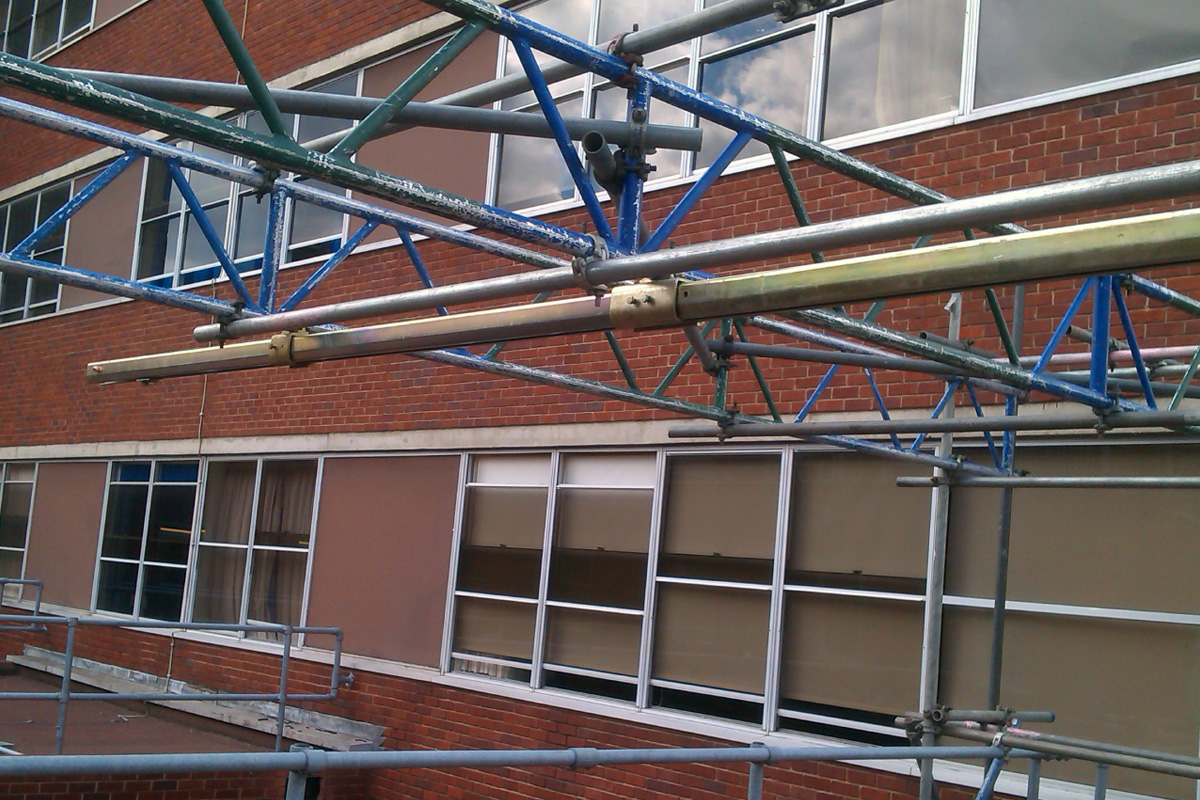

Clamps directly to existing scaffolding
Loads up to 2,000 kg
Straight and curved track sections
Junction switches available
Cantilever arrangements available
Two runways can support a bridge to create a crane
Manual or powered travel

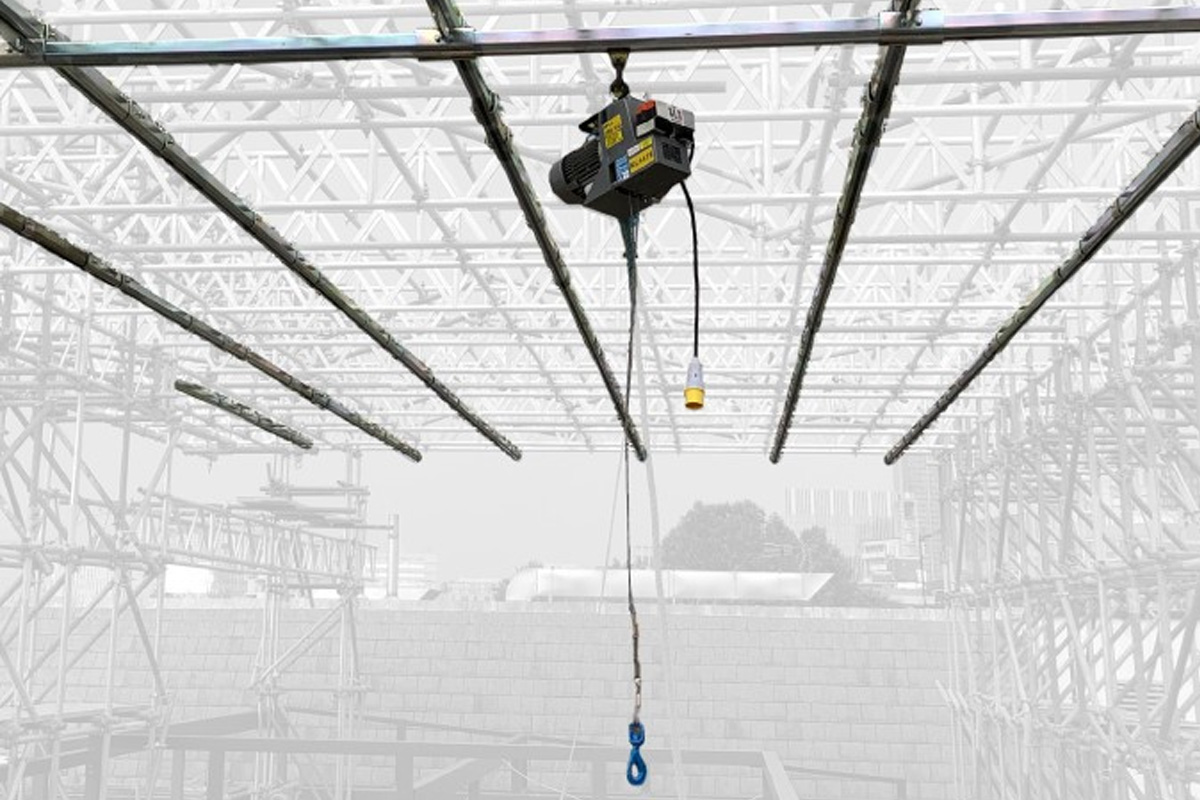

Manual or electric hoists can be incorporated
Modular kit-form construction
Internal festoon power supply available
Compatible with 48.3 mm scaffolding tube
Selected configurations/components can be used for fall-arrest applications

Suspension Method

Designed specifically for direct connection to scaffolding structures.

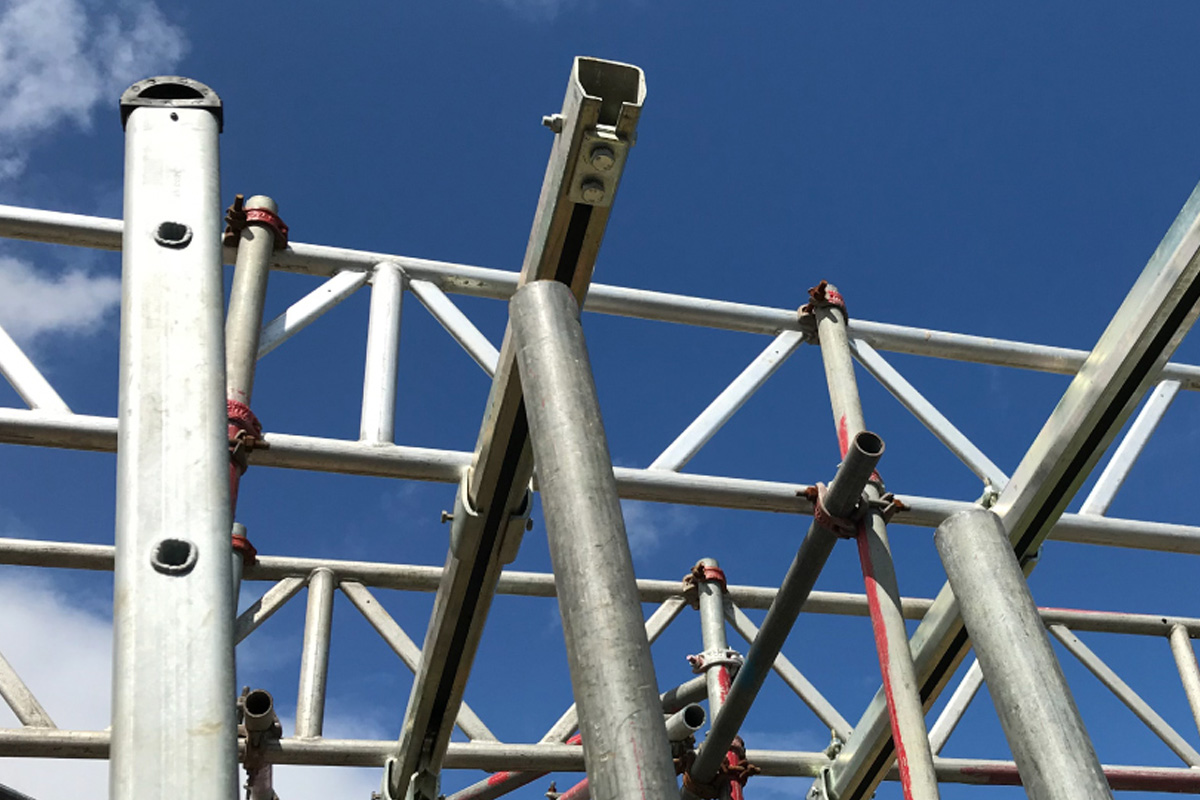

Standard Scaffold Support

Support Bracket .B81

Supports the track profile from the scaffolding structure using a standard scaffold connection attached to the bracket.

Scaffold Joint Support

Track Joint .B80

Connects adjoining track profiles while simultaneously supporting the runway from the scaffolding structure.

Product Range

NIKO Profile	SWL	Support Centres	Trolley
24.000	100/125 kg*	Confirm before publication	24.T48
25.000	250 kg	1.5m	25.T48
26.000	500 kg	1.5m	26.T48
27.000	1,000 kg	1.5m	27.T48
27.000	1,600 kg	1m	27.T24
27.000	2,000 kg	0.75m	27.T49

Configuration Options

Straight Monorail

A simple runway providing linear movement of loads along the scaffolding structure.

Curved Runway

Curved track enables the runway to follow building geometry and move loads around corners.

Runway with Junction Switches

Switches allow loads to change direction or move between different runway sections.

Cantilever Runway

Extends beyond the scaffold structure to allow materials to be collected or lowered outside the scaffold footprint.

Scaffolding Light Crane

Two parallel runway tracks can support a travelling bridge, creating an X/Y crane system and providing coverage across a larger working area.

Fall-Arrest Configuration

Selected NIKO track and trolley components can also form part of an appropriately engineered fall-arrest installation.

Important factors & FAQs

What is this product also known as?

Scaffolding Runway System
Scaffolding Crane
Scaffolding Monorail
Niko Runway System
Scaffold Runway System
Scaffolding Conveyor
Scaffold Lifting
Scaffold Conveyor
Scaffolding Hoist
Scaffold Hoist
Scaffold Crane
Scaffold Runway

What load can a NIKO Scaffolding Runway carry?

Systems can be configured for loads up to 2,000 kg, depending on the track profile, trolley arrangement and support centres.

Can the runway attach directly to standard scaffolding?

Yes. The system has been designed to connect directly to scaffolding tube using dedicated support and joint brackets.

Can the runway extend beyond the edge of the scaffolding?

Yes. Cantilever configurations can allow loads to be collected from or lowered beyond the scaffold structure.

Can the runway go around corners?

Yes. Straight track can be combined with curves and junction switches to suit the required route.

Can it be used to create a crane?

Yes. A bridge can be suspended between two parallel runway tracks to create a light crane arrangement.

Can electric hoists be used?

Yes. Both manual and electric hoists can be incorporated, subject to the system design and load requirements.

Can the system be relocated?

Yes. Its modular construction makes it particularly suitable for temporary applications where the runway may need to be extended, shortened or moved.

Can the same system be used for fall arrest?

Selected components/configurations can be used for fall-arrest applications, but this must be specified and engineered for that purpose.
