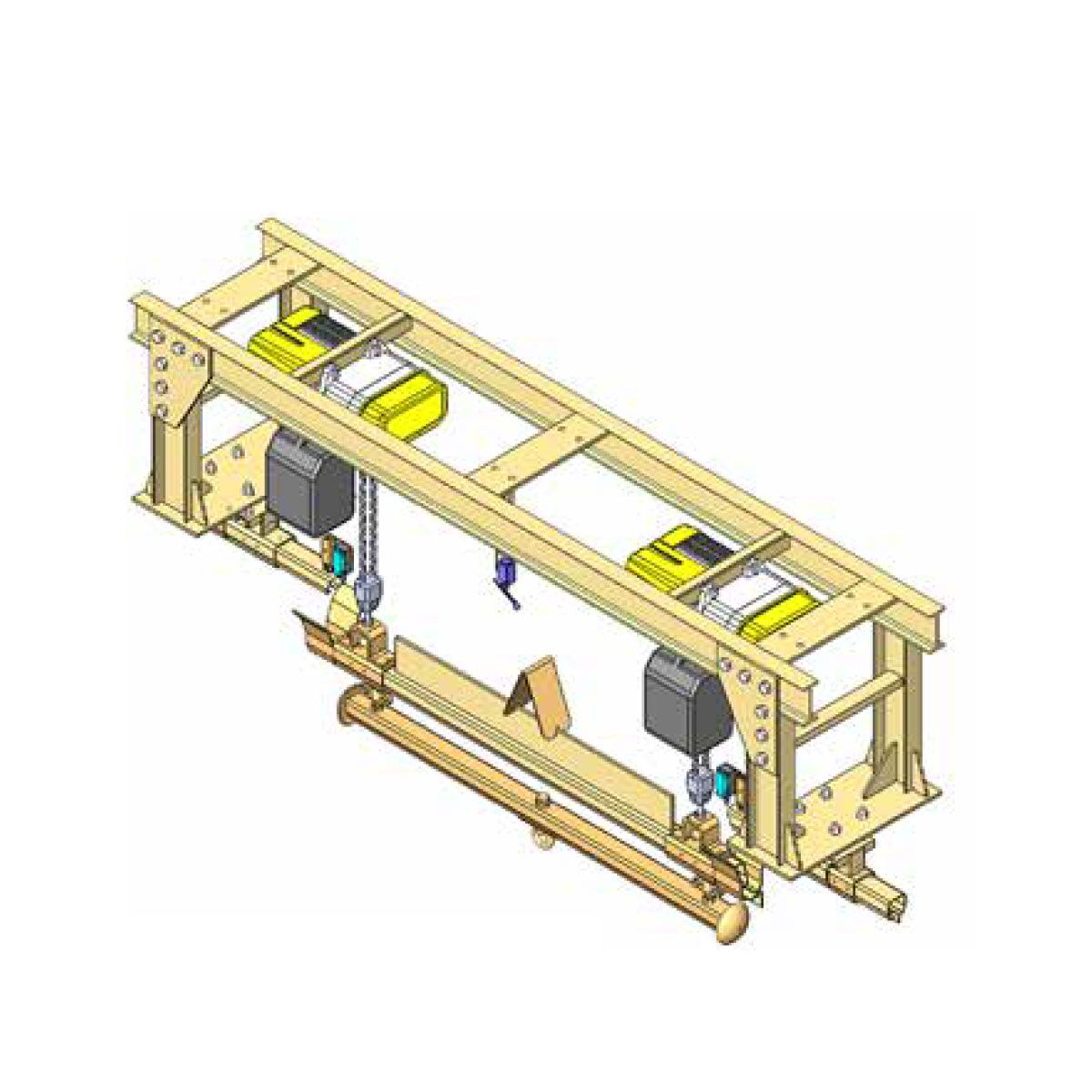

Low Headroom Drop Lift
The drop-lift station is supplied as complete kit, including all necessary safety obligations concerning safety of the flight bar.
Description
- 1 Mounting frame for the drop-lift station, consisting of beams. (f/n 1).
- 1 Track with diagonally cut ends (moving track piece/ lifting track for rise and descent) (f/n 2).
- 1 Security angled rail with notches for securing and holding the load carrier in place in the lifting track at the rise and descent (f/n 3).
- 2 Special connections for suspension with pressure spring for securing the security angled rail during the rise and descent (f/n 4).
- 2 Fixed track pieces with diagonally cut ends on both sides of the lifting track (f/n 5).
- 2 driver parts for the correct steering and alignment of the lifting track (f/n 6).
- 2 Special adjustable supports for securing the fixed track parts (f/n 7).
- 2 Special pneumatic safety devices for securing/unlocking the security angled rail and bracing of the fixed track pieces (f/n 8).
