NIKO Scaffolding Runway Track Profiles .000
NIKO Scaffolding Runway Track Profiles .000

Niko Scaffolding Runway Track Profiles .000

Our range of track sections is of compact design and high quality. the track is of cold rolled steel manufacture and is supplied in standard 3 metre lengths, although they can be as long as 6m if required. the design of…

Clear

Ordering multiples? Choose quantities

OptionQty
24.000-3-SCFPOA
25.000-3-SCFPOA
26.000-3-SCFPOA
27.000-3-SCFPOA
SKU: 24.000-3-SCF-GROUP

Description

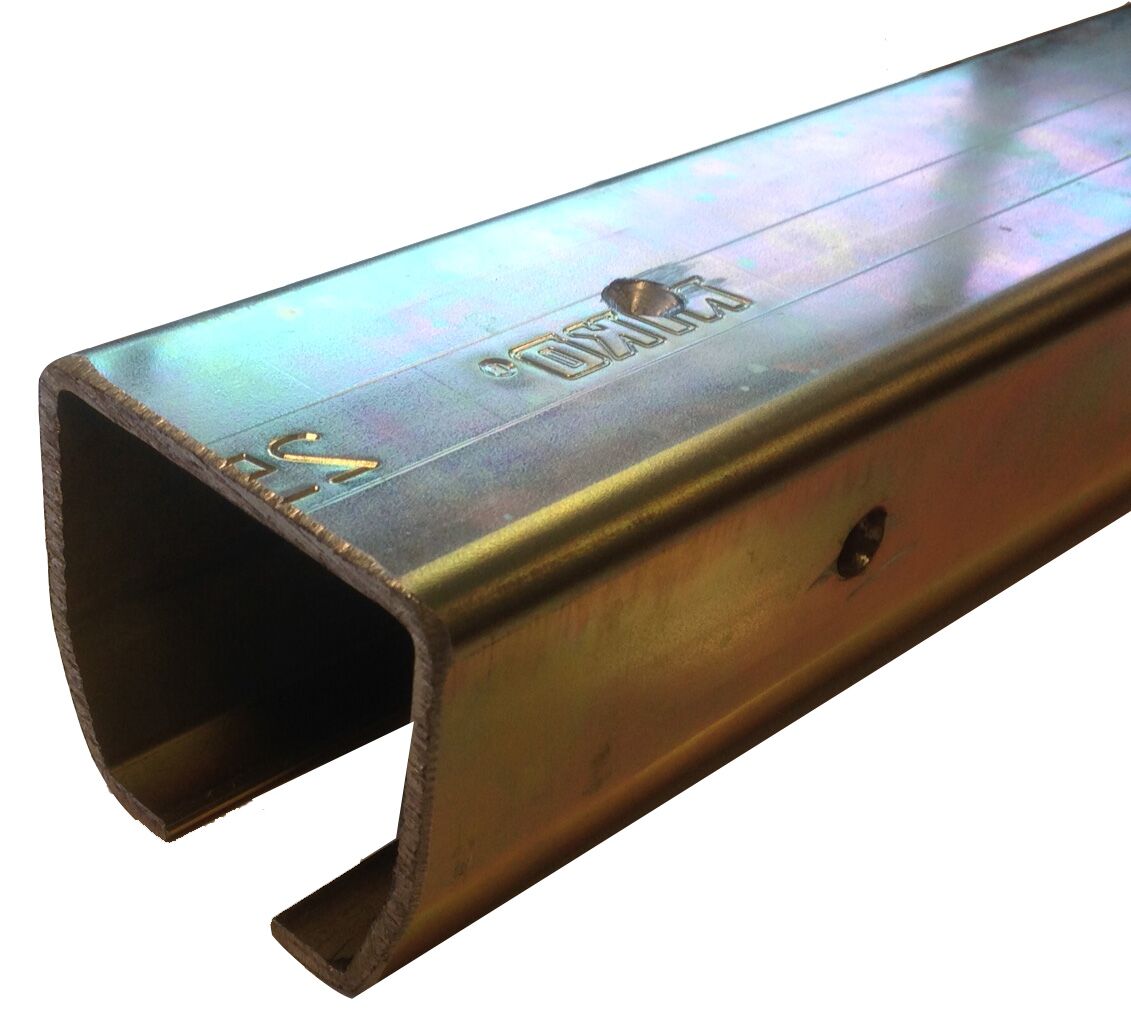

Our range of track sections is of compact design and high quality. The track is of cold rolled steel manufacture and is supplied in standard 3 metre lengths, although they can be as long as 6m if required. The design of the tapered sides reduces the possibility of a build up of dust, thus assuring smooth running of the trolleys. All lengths of scaffolding runway track are drilled at both ends for ultimate stop cross bolts and also have dimples in the top at both ends, to ensure that they locate correctly within the joint supports.

Specifications

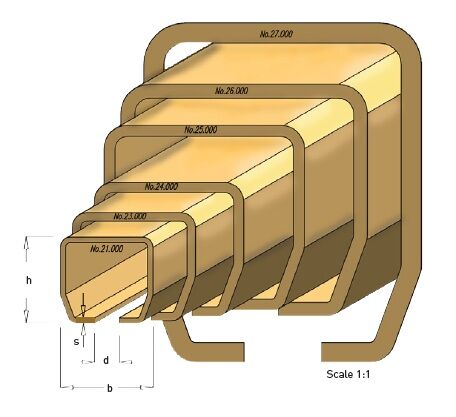

PART NO DESCRIPTION h (mm) b (mm) d (mm) s (mm)
24.000-3-SCF 3m Track Section (Steel – Gold Zinc Plated) 43.5 48.5 15 3.2
25.000-3-SCF 3m Track Section (Steel – Gold Zinc Plated) 60 65 18 3.6
26.000-3-SCF 3m Track Section (Steel – Gold Zinc Plated) 75 80 22 4.5
27.000-3-SCF 3m Track Section (Steel – Gold Zinc Plated) 110 90 25 6.5
