NIKO Track Profiles .000/.020/.050
NIKO Track Profiles .000/.020/.050

Niko Track Profiles .000/.020/.050

Our range of track sections is of compact design and high quality. the track is of cold rolled steel manufacture and is supplied in standard 6 metre lengths, either plain or zinc plated. the design of the tapered sides…

Clear

Ordering multiples? Choose quantities

OptionQty
23.000POA
23.020POA
23.050POA
24.000POA
24.020POA
24.050POA
25.000POA
25.050POA
26.000POA
26.020POA
27.000POA
27.020POA
SKU: .000/.020/.050

Description

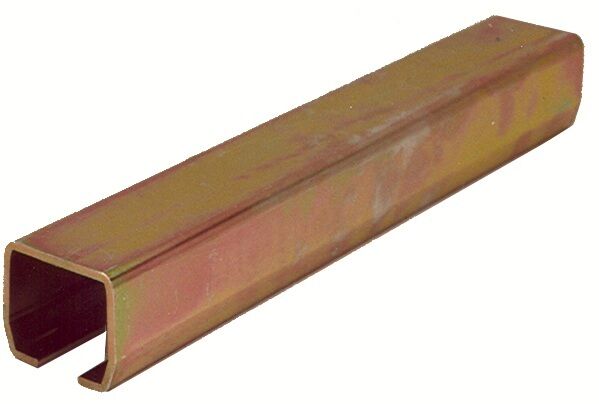

Our range of track sections is of compact design and high quality. The track is of cold rolled steel manufacture and is supplied in standard 6 metre lengths, either plain or zinc plated. The design of the tapered sides reduces the possibility of a build up of dust, thus assuring smooth running of the trolleys.

Specifications

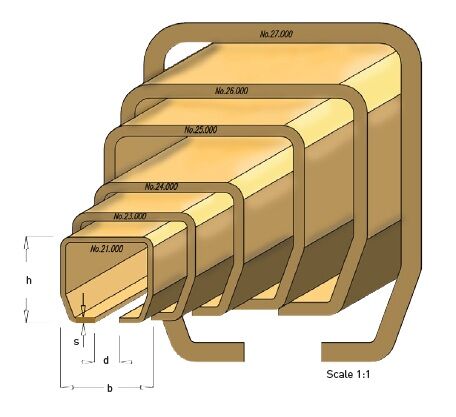

NIKO TRACK PROFILE DESCRIPTION h (mm) b (mm) d (mm) s (mm)
21.000 Steel – Gold Zinc Plated 28 30 8 1.75
21.050 Stainless Steel – Grade 304 28 30 8 1.75
23.000 Steel – Gold Zinc Plated 35 40 11 2.75
23.020 Steel – Plain Steel Finish 35 40 11 2.75
23.050 Stainless Steel – Grade 304 35 40 11 2.75
24.000 Steel – Gold Zinc Plated 43.5 48.5 15 3.2
24.020 Steel – Plain Steel Finish 43.5 48.5 15 3.2
24.050 Stainless Steel – Grade 304 43.5 48.5 15 3.2
25.000 Steel – Gold Zinc Plated 60 65 18 3.6
25.020 Steel – Plain Steel Finish 60 65 18 3.6
25.050 Stainless Steel – Grade 304 60 65 18 3.6
26.000 Steel – Gold Zinc Plated 75 80 22 4.5
26.020 Steel – Plain Steel Finish 75 80 22 4.5
27.000 Steel – Gold Zinc Plated 110 90 25 6.5
27.020 Steel – Plain Steel Finish 110 90 25 6.5
