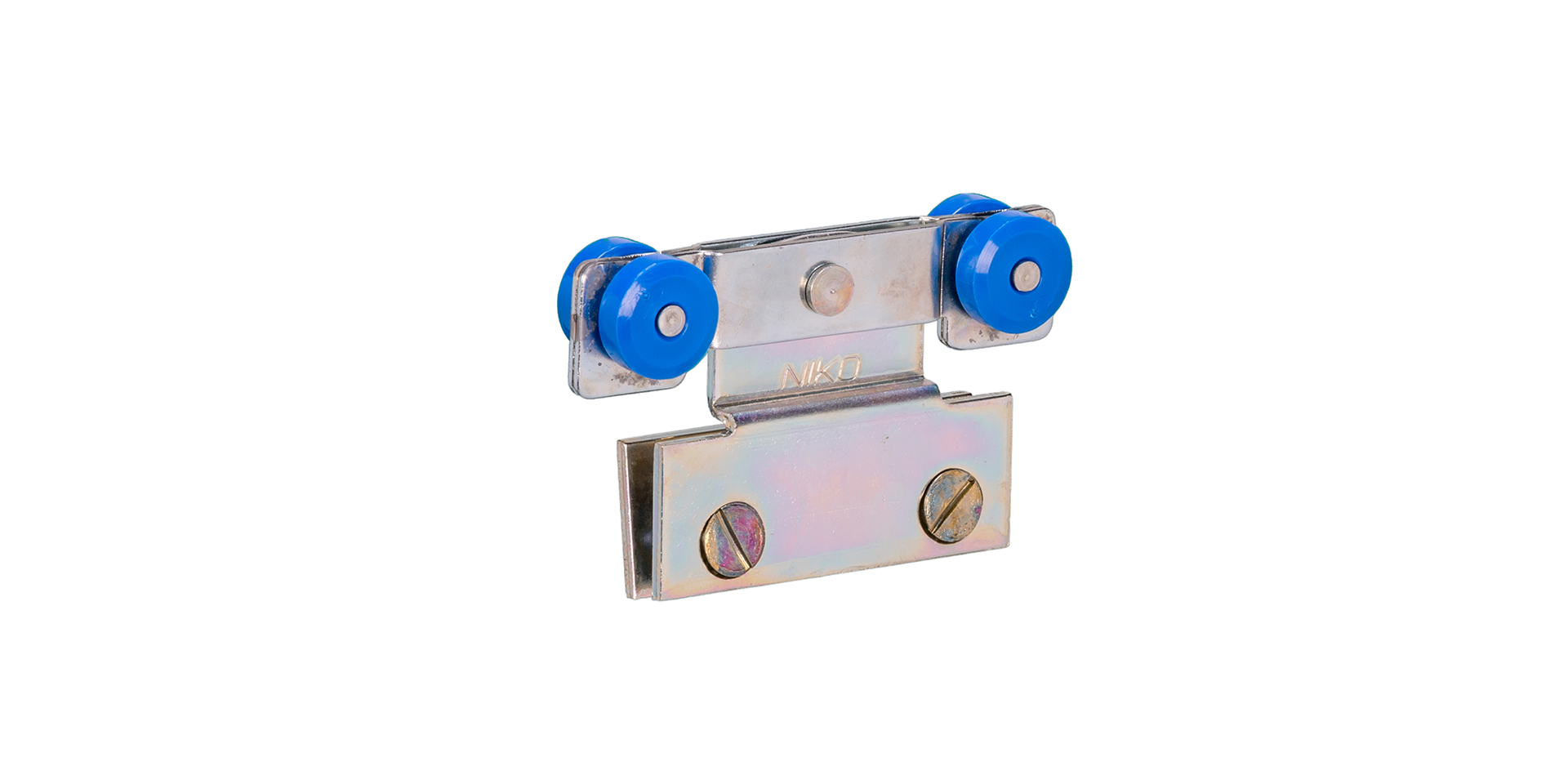

Wheel Hanger For Glass .r41/.r40
Wheel hanger for glass sliding doors.
Description
Specifications
| Part No. | NIKO Profile No. | SWL kg | H | h | L | L1 | Bmax | d1 | d | s |
|---|---|---|---|---|---|---|---|---|---|---|
| 21.R40 | 21.000 | 37.5 | 94 | 80 | 105 | 50 | 8 | 22 | Ø8 | 3 |

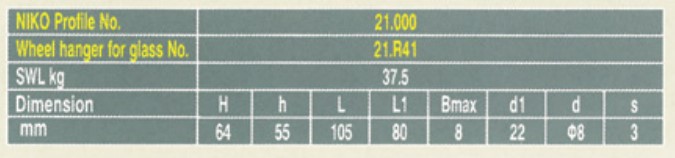

| 21.R41 | 21.000 | 37.5 | 64 | 55 | 105 | 80 | 8 | 22 | Ø8 | 3 |

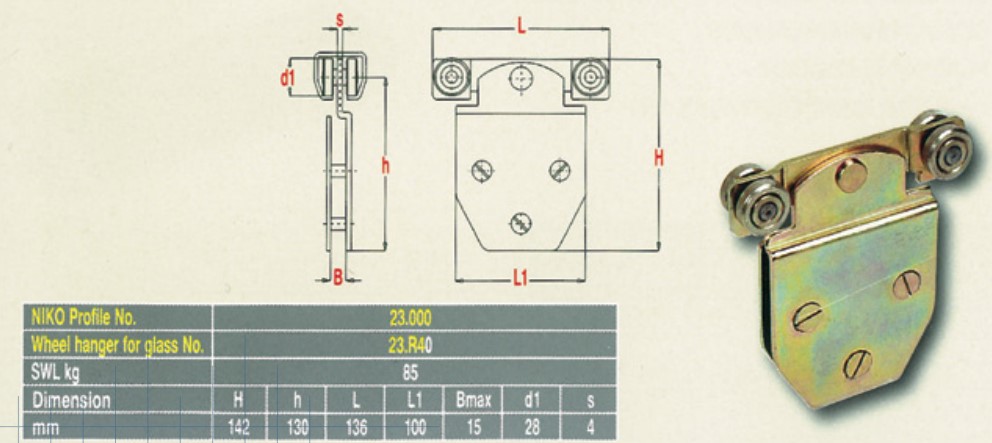

| 23.R40 | 23.000 | 85 | 142 | 130 | 136 | 100 | 15 | 28 | 4 |
Available Part Numbers
| Part No. |
|---|
| 21.R40 |
| 21.R41 |
| 23.R40 |
