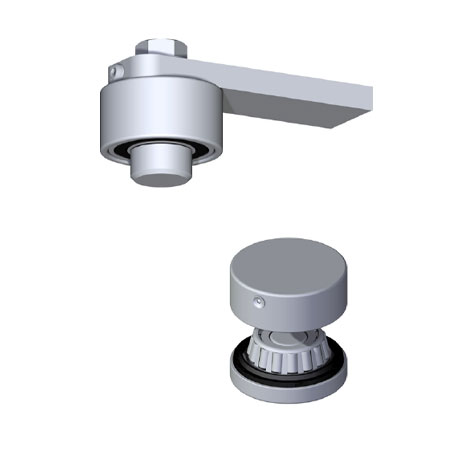

Steel Gate Hinge
Adjustable gate hinge with plate for welding, stainless steel (304/a2) or zinc plated.
Description
Adjustable gate hinge with plate for welding, stainless steel (304/A2) or zinc plated.
| NIKO Part No. | X5.BA50WI | X5.BA70W |
|---|---|---|
| Material | Stainless steel 304/A2 | Zinc plated |
| Dimension S (mm) | 10 | 12 |
| Dimension L (mm) | 75-85 | 109-119 |
| Dimension A (mm) | 37 | 46 |
| Dimension C (mm) | 30 | 35 |
| Dimension D (mm) | 50 | 70 |
| Dimension B (mm) | 26 | 32 |
| Dimension H (mm) | 32 | 40 |
