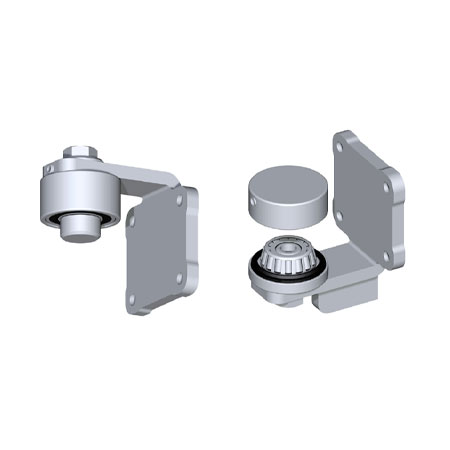

Steel Gate Hinge
Zinc plated gate hinge with plate for screw on.
Description
Zinc plated gate hinge with plate for screw on.
| NIKO Part No. | X5.BA50S | X5.BA70S |
|---|---|---|
| Dimension A (mm) | 82 | 109 |
| Dimension B (mm) | 72 | 94 |
| Dimension D (mm) | 50 | 70 |
| Dimension E (mm) | 110 | 143 |
| Dimension G (mm) | 50 | 63 |
| Dimension H (mm) | 32 | 40 |
| Dimension L (mm) | 65-75 | 75-85 |
| Dimension M (mm) | 60 | 85 |
| Dimension N (mm) | 50 | 70 |
| Dimension S (mm) | 8 | 10 |
| Dimension d (mm) | 9 | 11 |
